How to Reorder the Tree in 3DEXPERIENCE
Tree Reorder 3DX
Reordering the specification tree in 3DEXPERIENCE differs slightly from the process in CATIA V5. Follow the steps below to easily rearrange your tree structure:

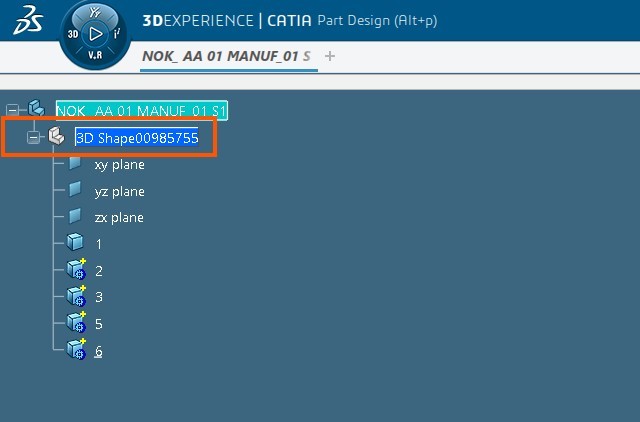

1. Activate the 3D Shape
Double click to select the 3D Shape in your tree.

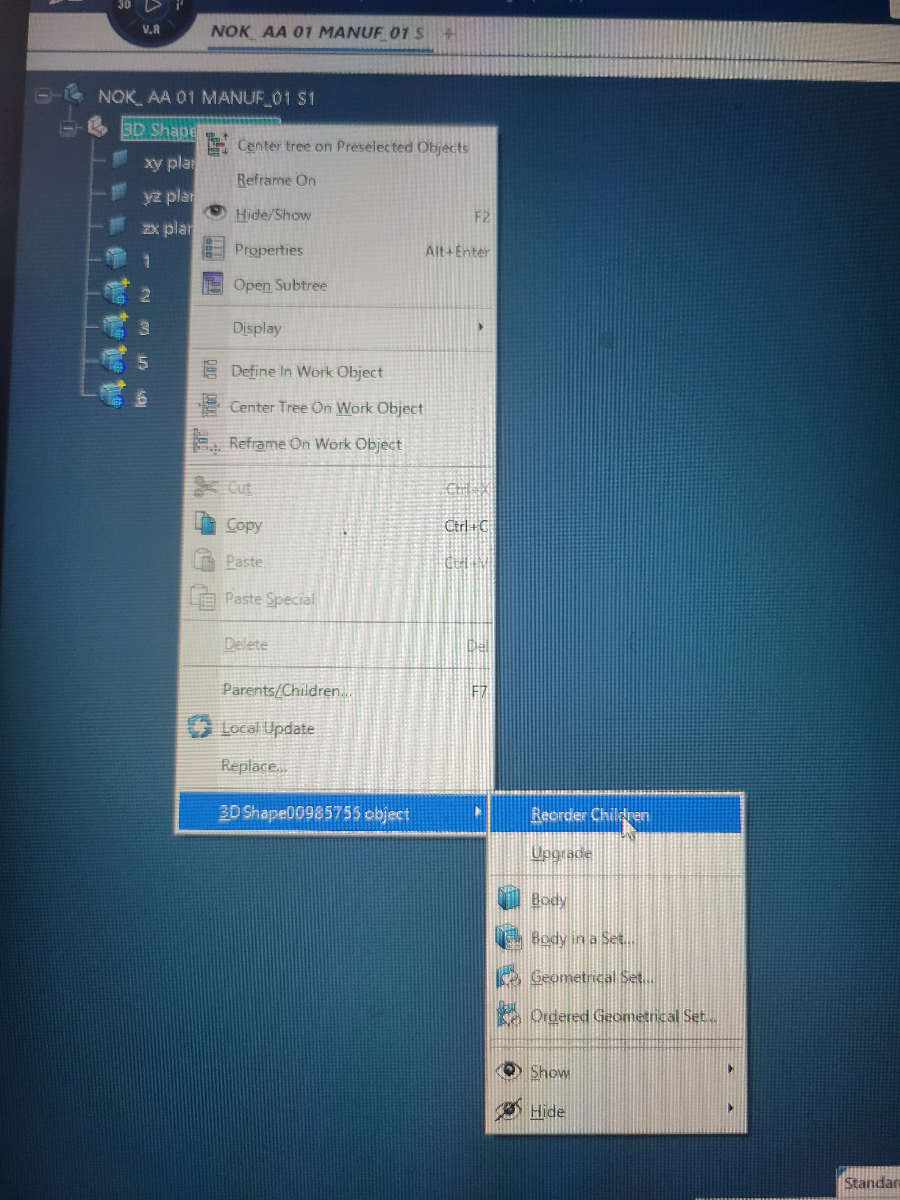

2. Access the Reorder Option
Right-click the 3D Shape, then navigate to the drop-down menu.
Select Reorder Children from the available options.

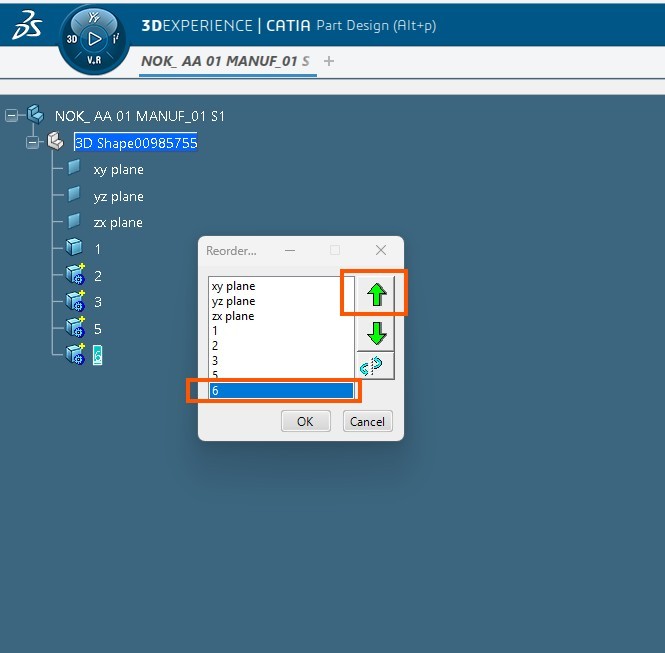

3. Choose and Reposition the Part Body
In the dialog that appears, select the Part Body you want to move.
Use the up/down arrows to adjust its position within the tree.

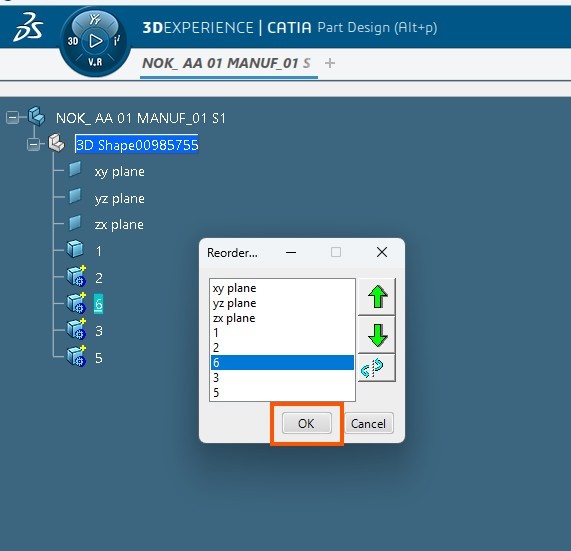

4. Apply the Changes
Once you're satisfied with the new order, click OK to confirm and apply the changes.
